15mm Triset Pressure Limiting Valve 1/2" Female BSP AVG PLV15F
The 15mm Triset Pressure Limiting Valve 1/2" Female BSP AVG PLV15F offers a compact design and three pressure settings - 350, 500, and 600kPa. This versatile valve can be installed vertically or horizontally.

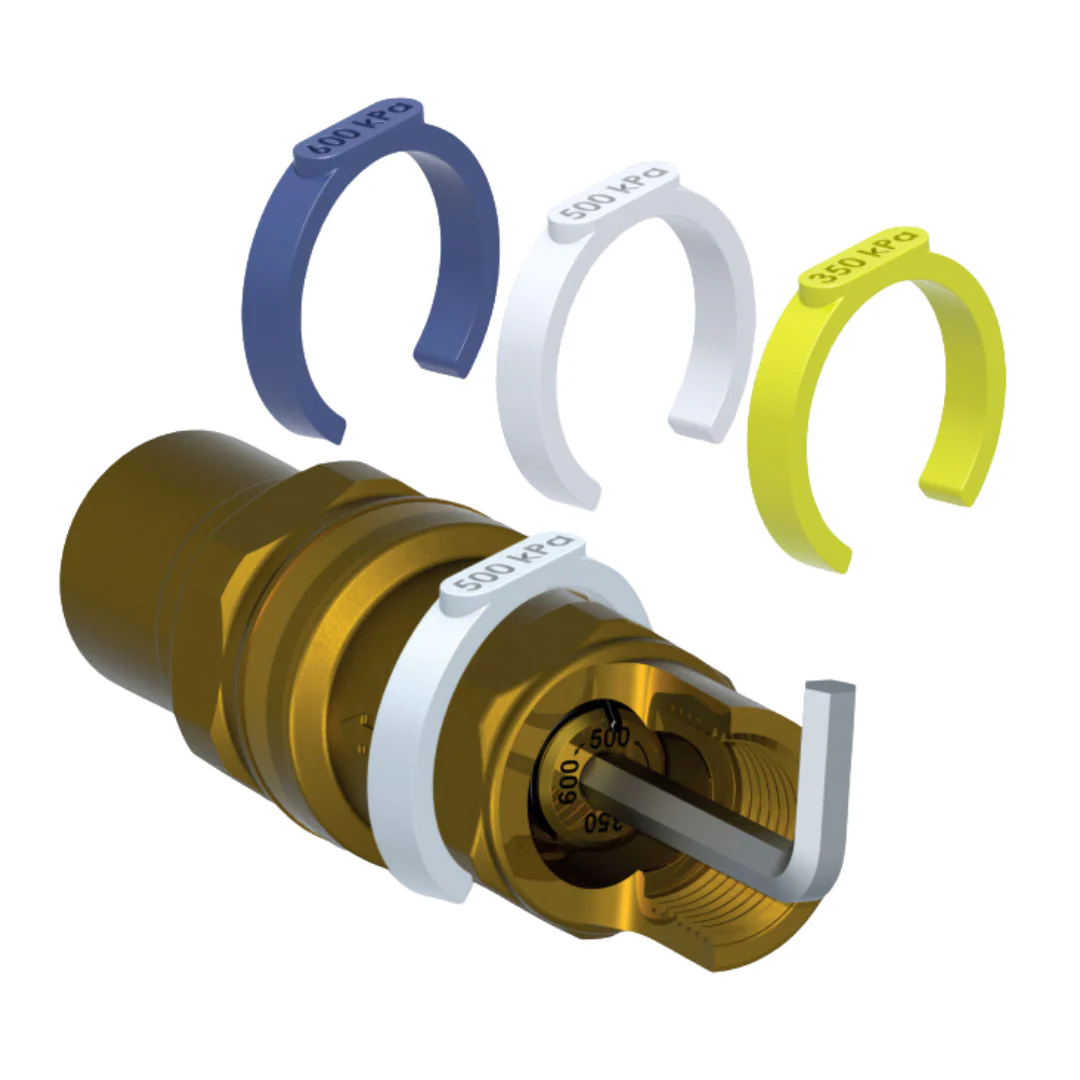

The 15mm Triset Pressure Limiting Valve 1/2" Female BSP AVG PLV15F allows for easy pressure adjustment with three selectable settings: 350, 500, and 600kPa. Made of durable DR brass with optimized waterways for efficient flow, this compact valve offers precise control. Use the Allen key provided to adjust the pressure to 600kPa (clockwise) or 350kPa (anti-clockwise) and align the set position mark with the values on the adjustment screw for visual confirmation.
It is not recommended to bury the 15mm 1/2" BSP Valves directly in the ground. For installation, approved boxes in the ground can be used. These valves have a vent hole design and are suitable for enclosed spaces, cupboards, and under sinks. They are made of dezincification-resistant brass and can be installed vertically or horizontally. The maximum inlet pressure is preset at 500 kPa and the maximum operating temperature is 80°C. These valves are compliant with AS 1357.2 and hold a WATERMARK license no. 2639. It is important to have a licensed plumber install the valves according to the manufacturer's instructions.
Original: $39.00
-70%$39.00
$11.70Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The 15mm Triset Pressure Limiting Valve 1/2" Female BSP AVG PLV15F offers a compact design and three pressure settings - 350, 500, and 600kPa. This versatile valve can be installed vertically or horizontally.
The 15mm Triset Pressure Limiting Valve 1/2" Female BSP AVG PLV15F allows for easy pressure adjustment with three selectable settings: 350, 500, and 600kPa. Made of durable DR brass with optimized waterways for efficient flow, this compact valve offers precise control. Use the Allen key provided to adjust the pressure to 600kPa (clockwise) or 350kPa (anti-clockwise) and align the set position mark with the values on the adjustment screw for visual confirmation.
It is not recommended to bury the 15mm 1/2" BSP Valves directly in the ground. For installation, approved boxes in the ground can be used. These valves have a vent hole design and are suitable for enclosed spaces, cupboards, and under sinks. They are made of dezincification-resistant brass and can be installed vertically or horizontally. The maximum inlet pressure is preset at 500 kPa and the maximum operating temperature is 80°C. These valves are compliant with AS 1357.2 and hold a WATERMARK license no. 2639. It is important to have a licensed plumber install the valves according to the manufacturer's instructions.
